Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of poles6
Rated permanent current Iu-A
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
InterlockableYes
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Motor drive integratedNo
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Number of switches1
Width506mm
Number of auxiliary contacts as normally closed contact0
Height250mm
Depth280mm
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V355kW
Rated short-time withstand current lcw20kA
Version as main switchYes
Version as emergency stop installationNo
Type of control elementOther
Version as safety switchNo
Suitable for distribution board installationYes
Colour control elementBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Motor drive optionalNo
Device constructionBuilt-in device plug-in technique
Switching power at 400 V355kW
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V630A
Rated permanent current at AC-21, 400 V630A
Version as reversing switchNo
Voltage release optionalNo
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

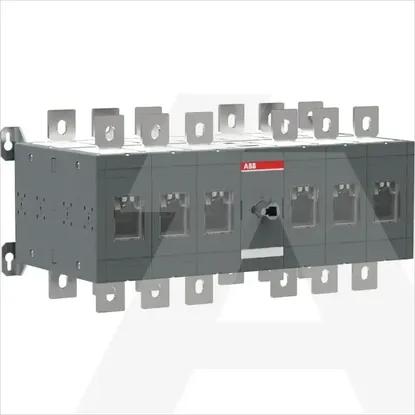

1SCA118651R1001 | OT630E33C
