Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as maintenance-/service switchYes
Version as safety switchNo
Version as reversing switchNo
Version as main switchYes
Version as emergency stop installationNo
Number of switches1
Max. rated operation voltage Ue AC1000V
Rated permanent current Iu1000A
Rated permanent current at AC-23, 400 V1000A
Rated operation power at AC-3, 400 V-kW
Rated permanent current at AC-21, 400 V-A
Rated operating voltage1000 - 1000V
Rated operation power at AC-23, 400 V560kW
Switching power at 400 V560kW
Rated short-time withstand current lcw50kA
Conditioned rated short-circuit current Iq-kA
Number of poles3
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as change-over contact0
Device constructionComplete device in housing
Number of auxiliary contacts as normally closed contact0
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for floor mountingNo
Colour control elementBlack
Type of control elementLong turning handle
InterlockableNo
Type of electrical connection of main circuitBolt connection
Width349.5mm
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Depth234mm
Height306mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

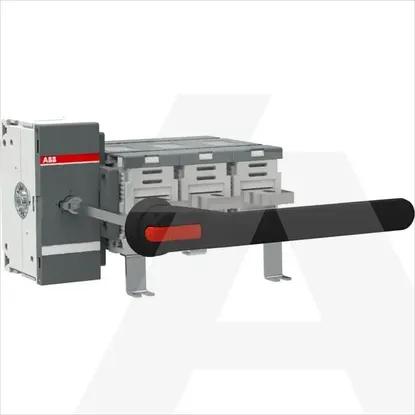

1SCA118937R1001 | OT1000EM03P
