Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Height306mm
Depth234mm
Number of auxiliary contacts as normally open contact0
Width609.5mm
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Number of poles4
Number of switches1
Rated permanent current Iu1250A
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Type of control elementLong turning handle
Suitable for floor mountingNo
Suitable for front mounting centreNo
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
InterlockableNo
Rated short-time withstand current lcw50kA
Colour control elementBlack
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Version as safety switchNo
Rated operation power at AC-23, 400 V710kW
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
With pre-assembled cablingNo
Device constructionComplete device in housing
Version as reversing switchNo
Switching power at 400 V710kW
Motor drive optionalNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V1250A
Rated permanent current at AC-21, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

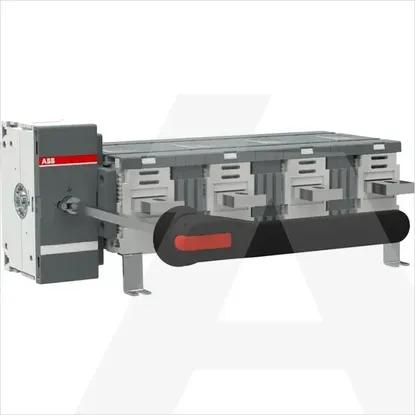

1SCA118940R1001 | OT1250EM04W4P
