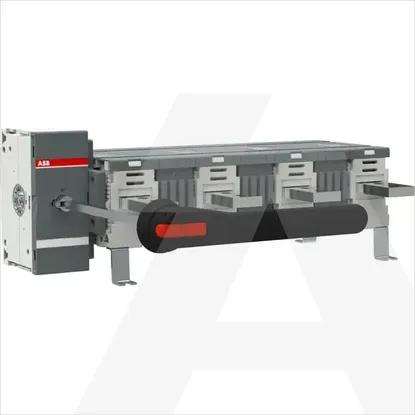

1SCA118942R1001 | OT1600EM04W4P
Code: 1982412
ManufacturerABB
Catalog number1SCA118942R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019505633
Details
- •OT1600EM04W4P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Height372mm
Number of switches1
InterlockableNo
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Width609.5mm
Degree of protection (IP), front sideIP00
Depth234mm
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as emergency stop installationNo
Version as main switchYes
Version as reversing switchNo
Voltage release optionalNo
Colour control elementBlack
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Switching power at 400 V710kW
With pre-assembled cablingNo
Motor drive optionalNo
Type of control elementLong turning handle
Suitable for floor mountingNo
Rated short-time withstand current lcw50kA
Rated operation power at AC-23, 400 V710kW
Rated permanent current at AC-21, 400 V-A
Rated permanent current at AC-23, 400 V1250A
Device constructionComplete device in housing
Suitable for distribution board installationNo
Version as safety switchNo
Rated permanent current Iu1600A
Number of poles4
Max. rated operation voltage Ue AC1000V
