Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as reversing switchNo
Version as safety switchNo
Version as emergency stop installationNo
Rated short-time withstand current lcw55kA
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V-kW
Number of switches1
Rated permanent current at AC-21, 400 V-A
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu-A
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
Max. rated operation voltage Ue AC1000V
Conditioned rated short-circuit current Iq-kA
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Number of auxiliary contacts as change-over contact0
Suitable for intermediate mountingNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Suitable for floor mountingNo
Degree of protection (NEMA)Other
Suitable for front mounting centreNo
InterlockableNo
Suitable for distribution board installationYes
Width655.5mm
Degree of protection (IP), front sideIP00
Number of poles4
With pre-assembled cablingNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Height376.5mm
Depth234mm
Width in number of modular spacings-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

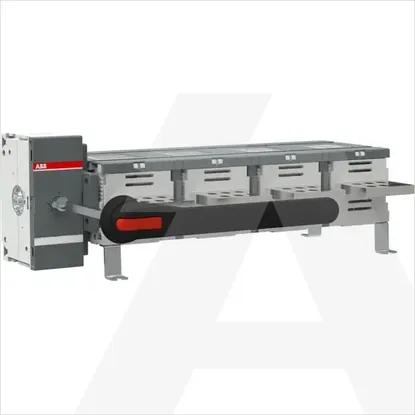

1SCA118943R1001 | OT2500EM04W4P
