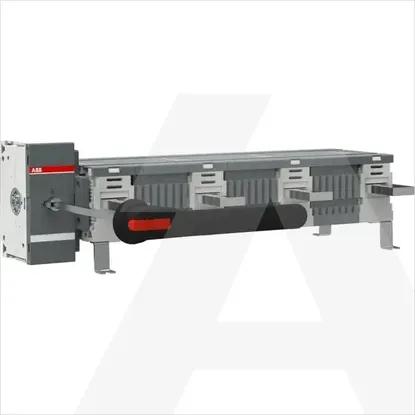

1SCA118944R1001 | OT1600EM04W8P
Code: 1982414
ManufacturerABB
Catalog number1SCA118944R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019505657
Details
- •OT1600EM04W8P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Width744.5mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Depth234mm
Rated operating voltage1000 - 1000V
Height372mm
Width in number of modular spacings-
Number of switches1
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
InterlockableNo
Type of electrical connection of main circuitBolt connection
Suitable for front mounting centreNo
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Version as safety switchNo
Rated short-time withstand current lcw50kA
Type of control elementLong turning handle
Rated permanent current at AC-23, 400 V1250A
Version as reversing switchNo
Version as main switchYes
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V710kW
Switching power at 400 V710kW
Suitable for floor mountingNo
Voltage release optionalNo
Version as maintenance-/service switchYes
Colour control elementBlack
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V-A
Device constructionComplete device in housing
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Motor drive integratedNo
Rated permanent current Iu1600A
Number of poles4
Max. rated operation voltage Ue AC1000V
