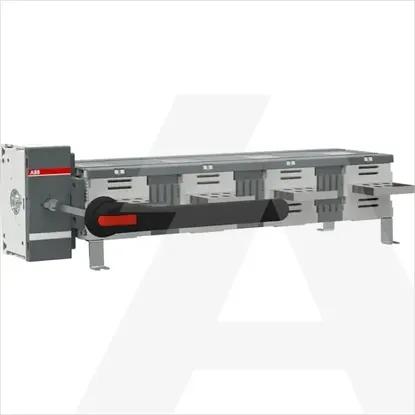

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Height376.5mm
Depth234mm
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Number of switches1
Number of poles4
Width790.5mm
Rated permanent current Iu-A
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP00
Colour control elementBlack
Type of electrical connection of main circuitBolt connection
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Rated operation power at AC-23, 400 V-kW
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw55kA
Switching power at 400 V-kW
Suitable for front mounting centreNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Motor drive integratedNo
Version as emergency stop installationNo
Device constructionComplete device in housing
Suitable for distribution board installationYes
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Version as main switchYes
Rated permanent current at AC-23, 400 V-A
Type of control elementLong turning handle
InterlockableNo
Motor drive optionalNo
Suitable for floor mountingNo
Version as safety switchNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA118945R1001 | OT2500EM04W8P
