Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width613.5mm
Rated operation power at AC-3, 400 V-kW
Height376.5mm
Number of poles4
Depth234mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu-A
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationYes
InterlockableNo
Version as main switchYes
Colour control elementBlack
Rated operating voltage1000 - 1000V
Suitable for floor mountingNo
Width in number of modular spacings-
Number of switches1
Degree of protection (IP), front sideIP00
Suitable for front mounting centreNo
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw55kA
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq-kA
Version as maintenance-/service switchYes
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Type of control elementLong turning handle
Voltage release optionalNo
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Suitable for intermediate mountingNo
Version as reversing switchNo
Switching power at 400 V-kW
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

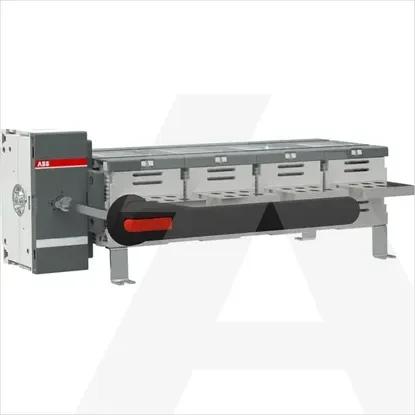

1SCA118947R1001 | OT2000EM04P
