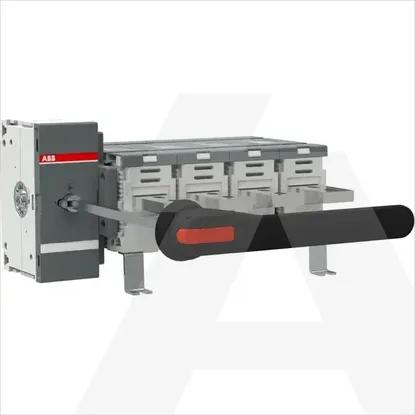

1SCA118948R1001 | OT1600EM04P
Code: 1982418
ManufacturerABB
Catalog number1SCA118948R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019505695
Details
- •OT1600EM04P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Number of switches1
Conditioned rated short-circuit current Iq-kA
Version as emergency stop installationNo
Height372mm
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
InterlockableNo
Width429.5mm
Rated operation power at AC-23, 400 V710kW
Version as maintenance-/service switchYes
Version as main switchYes
Version as safety switchNo
Depth234mm
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Suitable for floor mountingNo
With pre-assembled cablingNo
Motor drive optionalNo
Device constructionComplete device in housing
Version as reversing switchNo
Suitable for distribution board installationNo
Rated short-time withstand current lcw50kA
Rated permanent current at AC-23, 400 V1250A
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V710kW
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Rated permanent current Iu1600A
Number of poles4
Max. rated operation voltage Ue AC1000V
