Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Type of control elementOther
Width in number of modular spacings-
Rated permanent current Iu1000A
Number of auxiliary contacts as change-over contact0
Number of poles3
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Number of switches1
Version as emergency stop installationNo
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Width349.5mm
InterlockableNo
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP00
Depth234mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Height306mm
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw50kA
Voltage release optionalNo
Motor drive optionalNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Version as main switchYes
With pre-assembled cablingNo
Version as reversing switchNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V560kW
Version as maintenance-/service switchYes
Version as safety switchNo
Switching power at 400 V560kW
Rated permanent current at AC-23, 400 V1000A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

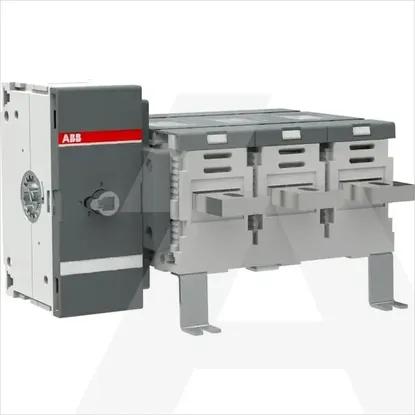

1SCA119004R1001 | OT1000EM03
