Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Width346.5mm
Depth145.5mm
Height376.5mm
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Number of poles2
Rated permanent current Iu-A
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Number of switches1
InterlockableNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as safety switchNo
Type of control elementOther
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw55kA
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V-A
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V-kW
Suitable for front mounting centreNo
Device constructionComplete device in housing
Motor drive optionalNo
Version as reversing switchNo
Suitable for floor mountingNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Voltage release optionalNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

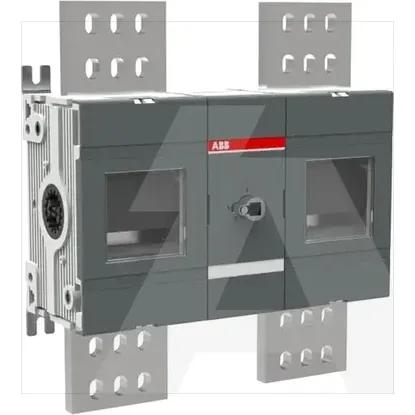

1SCA120027R1001 | OT2000E11
