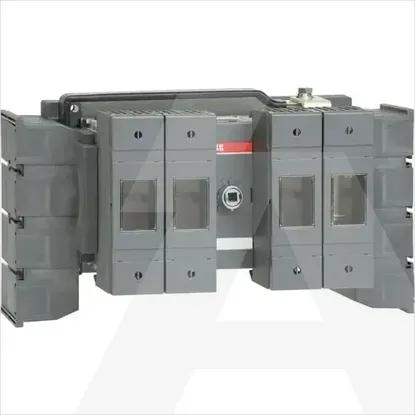

1SCA120277R1001 | OS160GB22LRP
Code: 1982451
ManufacturerABB
Catalog number1SCA120277R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019517902
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V132kW
Version as emergency stop installationNo
Version as safety switchYes
Version as main switchYes
Cable entryOther
Suitable for front mountingNo
Suitable for floor mountingNo
Rated short-time withstand current lcw5kA
Motor drive optionalNo
Position control elementFront side
Equipped with connectorsYes
Suitable for busbar mountingYes
With error protectionNo
Rated permanent current Iu160A
Number of poles4
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
