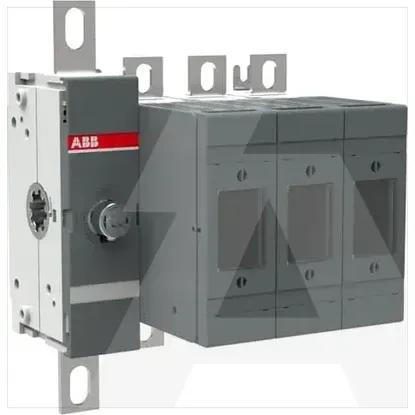

1SCA120287R1001 | OS125GD03N3
Code: 1982453
ManufacturerABB
Catalog number1SCA120287R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019518008
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Suitable for front mountingNo
Rated short-time withstand current lcw5kA
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Suitable for busbar mountingYes
Rated operation power at AC-23, 400 V110kW
Motor drive optionalNo
Version as main switchYes
Suitable for floor mountingNo
Cable entryOther
Position control elementLeft
With error protectionNo
Equipped with connectorsYes
Rated permanent current Iu125A
Number of poles3
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
