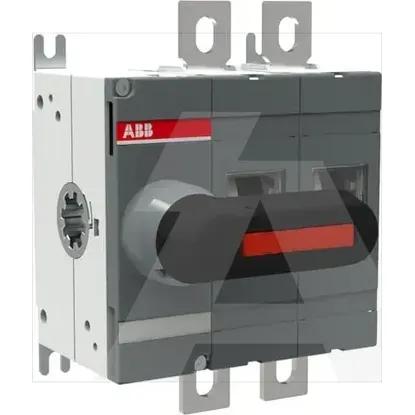

1SCA120510R1001 | OT160EV02K
Code: 1982457
ManufacturerABB
Catalog number1SCA120510R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019519708
Details
- •OT160EV02K SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height150mm
Width110.5mm
Depth107mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP00
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Type of control elementLong turning handle
Number of switches1
Rated short-time withstand current lcw8kA
Motor drive integratedNo
Suitable for distribution board installationNo
Suitable for floor mountingNo
InterlockableNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Version as maintenance-/service switchYes
Colour control elementBlack
Motor drive optionalNo
Version as safety switchNo
Rated operation power at AC-23, 400 V88kW
Suitable for front mounting centreNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V200A
Switching power at 400 V88kW
Rated permanent current at AC-23, 400 V160A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current Iu160A
Number of poles2
Max. rated operation voltage Ue AC1000V
