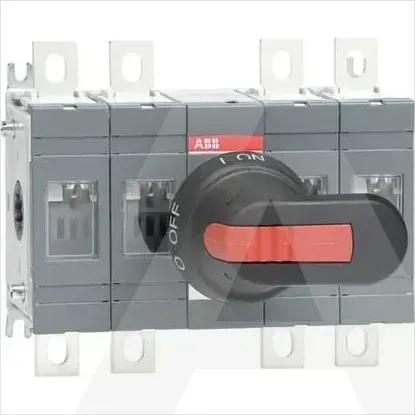

1SCA120537R1001 | OT160EV22P
Code: 1982462
ManufacturerABB
Catalog number1SCA120537R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019520049
Details
- •OT160EV22P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width185.5mm
Number of auxiliary contacts as normally open contact0
Height150mm
Rated operation power at AC-3, 400 V-kW
Depth82.5mm
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Number of switches1
Motor drive integratedNo
Version as safety switchNo
Version as main switchYes
InterlockableNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V88kW
Degree of protection (IP), front sideIP00
Version as emergency stop installationNo
Width in number of modular spacings-
Conditioned rated short-circuit current Iq100kA
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Motor drive optionalNo
Rated short-time withstand current lcw8kA
Voltage release optionalNo
Colour control elementBlack
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V160A
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V200A
Switching power at 400 V88kW
Version as reversing switchNo
Rated permanent current Iu160A
Number of poles4
Max. rated operation voltage Ue AC1000V
