Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height250.5mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Width150mm
Depth82.5mm
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu160A
Number of poles6
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Version as emergency stop installationNo
Motor drive integratedNo
Degree of protection (IP), front sideIP00
Number of switches1
Type of control elementOther
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Version as safety switchNo
Rated short-time withstand current lcw8kA
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V88kW
Number of auxiliary contacts as change-over contact0
Max. rated operation voltage Ue AC1000V
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V160A
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V200A
Switching power at 400 V88kW
Device constructionComplete device in housing
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

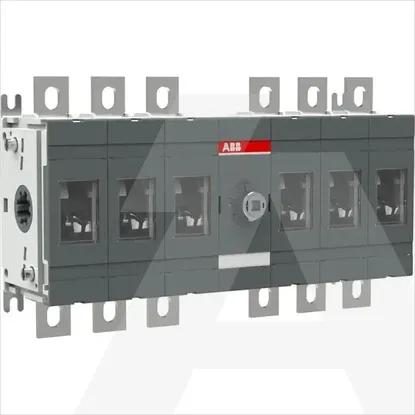

1SCA120558R1001 | OT160EV33
