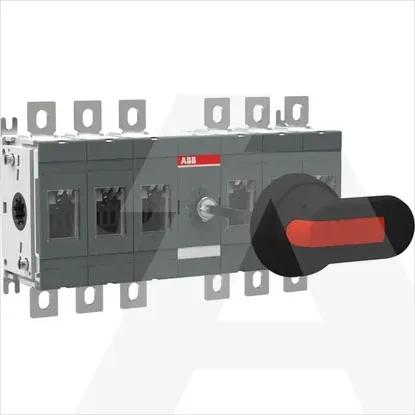

1SCA120560R1001 | OT160EV33P
Code: 1982464
ManufacturerABB
Catalog number1SCA120560R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019520292
Details
- •OT160EV33P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height150mm
Depth82.5mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Width255.5mm
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
InterlockableNo
Degree of protection (IP), front sideIP00
Number of switches1
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationNo
Voltage release optionalNo
Colour control elementBlack
Suitable for front mounting centreNo
Version as emergency stop installationNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Type of control elementLong turning handle
Motor drive integratedNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V-kW
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Version as main switchYes
Version as maintenance-/service switchYes
Conditioned rated short-circuit current Iq-kA
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V200A
Degree of protection (NEMA)Other
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
Rated permanent current Iu160A
Number of poles6
Max. rated operation voltage Ue AC1000V
