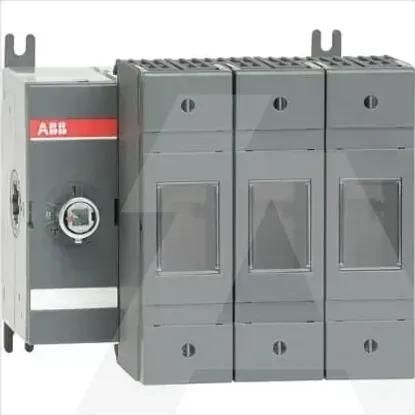

1SCA120655R1001 | OS160GD03BBP
Code: 1982466
ManufacturerABB
Catalog number1SCA120655R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019521220
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Type of control elementLong turning handle
Cable entryOther
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Suitable for front mountingNo
Rated short-time withstand current lcw5kA
Version as main switchYes
Suitable for floor mountingNo
Suitable for busbar mountingYes
Version as safety switchYes
Rated operation power at AC-23, 400 V132kW
With error protectionNo
Equipped with connectorsYes
Position control elementLeft
Motor drive optionalNo
Rated permanent current Iu160A
Number of poles3
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
