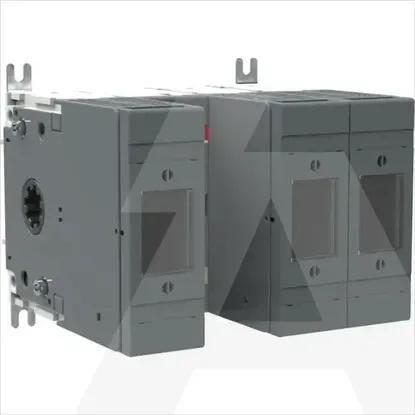

1SCA120751R1001 | OS160GD12BB
Code: 1982470
ManufacturerABB
Catalog number1SCA120751R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019521893
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Position control elementFront side
Type of control elementShort thumb-grip
Rated operation power at AC-23, 400 V132kW
Rated short-time withstand current lcw5kA
Suitable for floor mountingNo
Version as emergency stop installationNo
Equipped with connectorsYes
Version as main switchYes
Suitable for front mountingNo
Suitable for busbar mountingYes
Motor drive optionalNo
With error protectionNo
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu160A
Number of poles3
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA120751R1001 | OS160GD12BB
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Motor drive integrated
Conditioned rated short-circuit current Iq
80kA
Position control element
Front side
Type of control element
Short thumb-grip
Rated operation power at AC-23, 400 V
132kW
Rated short-time withstand current lcw
5kA
Suitable for floor mounting
Version as emergency stop installation
Equipped with connectors
Version as main switch
Suitable for front mounting
Suitable for busbar mounting
Motor drive optional
With error protection
Version as safety switch
Type of electrical connection of main circuit
Bolt connection
Rated permanent current Iu
160A
Number of poles
3
Suitable for fuses
NH000
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
