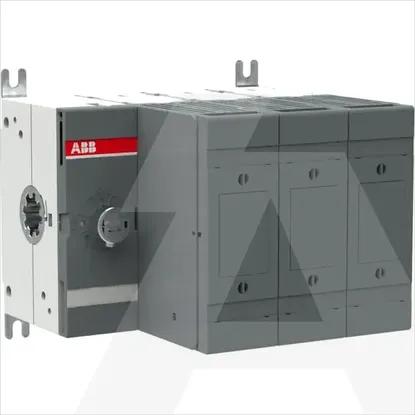

1SCA120801R1001 | OS125GD03BB
Code: 1982472
ManufacturerABB
Catalog number1SCA120801R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019522548
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Version as emergency stop installationNo
Motor drive integratedNo
Type of control elementShort thumb-grip
Type of electrical connection of main circuitBolt connection
Version as main switchYes
With error protectionNo
Suitable for floor mountingNo
Suitable for front mountingNo
Rated short-time withstand current lcw5kA
Suitable for busbar mountingYes
Position control elementLeft
Equipped with connectorsYes
Rated operation power at AC-23, 400 V110kW
Motor drive optionalNo
Rated permanent current Iu125A
Number of poles3
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
