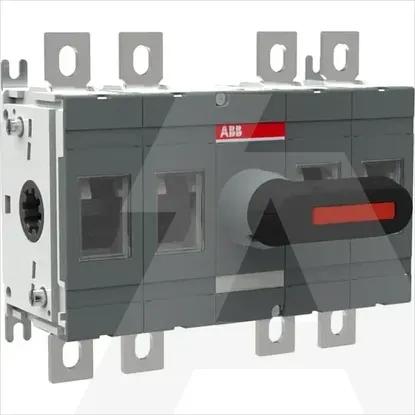

1SCA121048R1001 | OT160EV22K
Code: 1982478
ManufacturerABB
Catalog number1SCA121048R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019524023
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Height150mm
Number of auxiliary contacts as normally open contact0
Width180.5mm
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Depth107mm
Number of switches1
InterlockableNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Version as reversing switchNo
Rated short-time withstand current lcw8kA
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Device constructionComplete device in housing
Rated operation power at AC-23, 400 V88kW
Colour control elementBlack
Degree of protection (NEMA)Other
Voltage release optionalNo
Switching power at 400 V88kW
Rated permanent current at AC-23, 400 V160A
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V200A
With pre-assembled cablingNo
Suitable for front mounting centreNo
Rated permanent current Iu160A
Number of poles4
Max. rated operation voltage Ue AC1000V
