Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width146.5mm
Number of auxiliary contacts as normally closed contact0
Depth82mm
Rated permanent current Iu250A
Number of poles2
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Height150mm
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Number of switches1
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
InterlockableNo
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Motor drive integratedNo
Version as safety switchNo
Suitable for front mounting centreNo
Type of control elementOther
Version as main switchYes
Device constructionComplete device in housing
Voltage release optionalNo
Rated permanent current at AC-21, 400 V250A
Version as maintenance-/service switchYes
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Rated short-time withstand current lcw8kA
Rated permanent current at AC-23, 400 V250A
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated operation power at AC-23, 400 V145kW
Suitable for floor mountingNo
Switching power at 400 V145kW
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

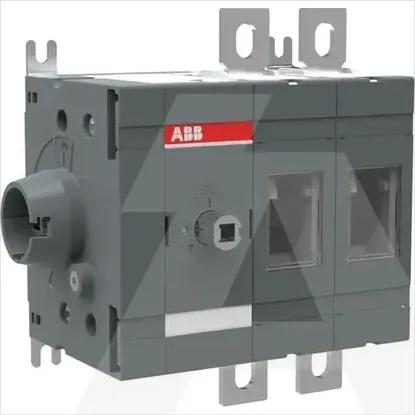

1SCA121076R1001 | OT250ES02
