Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Number of poles2
Motor drive integratedNo
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of switches1
Width261mm
Number of auxiliary contacts as normally closed contact0
Height150mm
Rated permanent current Iu200A
Depth181mm
Degree of protection (IP), front sideIP00
InterlockableNo
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Version as main switchYes
Max. rated operation voltage Ue AC1000V
Suitable for front mounting 4-holeYes
Type of control elementLong turning handle
Suitable for distribution board installationYes
Version as maintenance-/service switchNo
With pre-assembled cablingNo
Voltage release optionalNo
Version as reversing switchNo
Motor drive optionalNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Degree of protection (NEMA)Other
Rated short-time withstand current lcw8kA
Suitable for intermediate mountingNo
Switching power at 400 V110kW
Version as safety switchNo
Rated operation power at AC-23, 400 V110kW
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V200A
Colour control elementBlack
Rated permanent current at AC-21, 400 V200A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

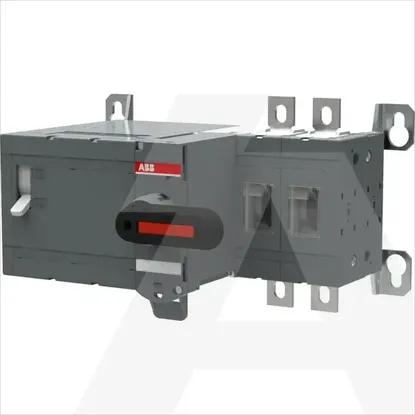

1SCA121184R1001 | OTM200E2M230V
