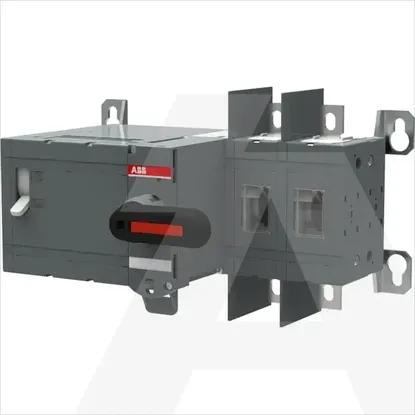

1SCA121187R1001 | OTM200E2WM230V
Code: 1982483
ManufacturerABB
Catalog number1SCA121187R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019524634
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth181mm
Height150mm
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Width261mm
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Number of switches1
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Rated operation power at AC-3, 400 V-kW
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Version as emergency stop installationNo
Version as main switchYes
Version as maintenance-/service switchNo
Rated operation power at AC-23, 400 V110kW
Suitable for front mounting centreNo
Rated short-time withstand current lcw8kA
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Voltage release optionalNo
Switching power at 400 V110kW
Version as safety switchNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V200A
Motor drive optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Colour control elementBlack
Version as reversing switchNo
Rated permanent current at AC-21, 400 V200A
Suitable for distribution board installationYes
Suitable for floor mountingNo
Rated permanent current Iu200A
Number of poles2
Max. rated operation voltage Ue AC1000V
