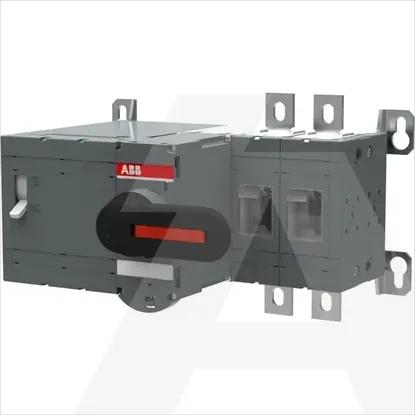

1SCA121189R1001 | OTM315E2M230V
Code: 1982485
ManufacturerABB
Catalog number1SCA121189R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019524658
Details
- •OTM315E2M230V MOTORIZED SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width298mm
Width in number of modular spacings-
Height185mm
Degree of protection (IP), front sideIP00
Depth211.5mm
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableNo
Version as main switchYes
Version as safety switchNo
Rated operation power at AC-23, 400 V160kW
Motor drive integratedNo
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw15kA
Type of control elementLong turning handle
Colour control elementBlack
Version as maintenance-/service switchNo
Voltage release optionalNo
Suitable for front mounting centreNo
Switching power at 400 V160kW
Version as reversing switchNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Rated permanent current at AC-21, 400 V315A
Suitable for front mounting 4-holeYes
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V315A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current Iu315A
Number of poles2
Max. rated operation voltage Ue AC1000V
