Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth312mm
Rated operation power at AC-3, 400 V-kW
Height250mm
Number of auxiliary contacts as normally open contact0
Width350mm
Rated permanent current Iu630A
Motor drive integratedNo
InterlockableNo
Width in number of modular spacings-
Type of electrical connection of main circuitBolt connection
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP00
Number of switches1
Rated operating voltage1000 - 1000V
Number of poles2
Conditioned rated short-circuit current Iq80kA
Suitable for floor mountingNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw20kA
Version as safety switchNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeYes
Version as maintenance-/service switchNo
Version as main switchYes
Version as emergency stop installationNo
Type of control elementLong turning handle
Colour control elementBlack
Rated operation power at AC-23, 400 V355kW
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated permanent current at AC-23, 400 V630A
Voltage release optionalNo
Max. rated operation voltage Ue AC1000V
Device constructionComplete device in housing
Switching power at 400 V355kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V630A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

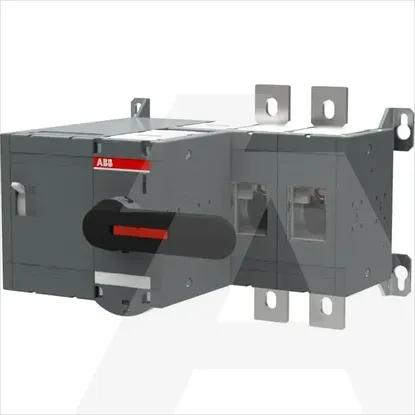

1SCA121190R1001 | OTM630E2M230V
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Depth
312mm
Rated operation power at AC-3, 400 V
-kW
Height
250mm
Number of auxiliary contacts as normally open contact
0
Width
350mm
Rated permanent current Iu
630A
Motor drive integrated
Interlockable
Width in number of modular spacings
-
Type of electrical connection of main circuit
Bolt connection
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally closed contact
0
Degree of protection (IP), front side
IP00
Number of switches
1
Rated operating voltage
1000 .. 1000V
Number of poles
2
Conditioned rated short-circuit current Iq
80kA
Suitable for floor mounting
Suitable for front mounting centre
Rated short-time withstand current lcw
20kA
Version as safety switch
Suitable for distribution board installation
Suitable for intermediate mounting
Suitable for front mounting 4-hole
Version as maintenance-/service switch
Version as main switch
Version as emergency stop installation
Type of control element
Long turning handle
Colour control element
Black
Rated operation power at AC-23, 400 V
355kW
With pre-assembled cabling
Degree of protection (NEMA)
Other
Version as reversing switch
Rated permanent current at AC-23, 400 V
630A
Voltage release optional
Max. rated operation voltage Ue AC
1000V
Device construction
Complete device in housing
Switching power at 400 V
355kW
Motor drive optional
Rated permanent current at AC-21, 400 V
630A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
