Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of poles2
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Number of switches1
Version as maintenance-/service switchNo
Motor drive integratedNo
Width in number of modular spacings-
Version as main switchYes
Rated permanent current Iu1250A
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Rated operation power at AC-23, 400 V710kW
Width426.5mm
Degree of protection (IP), front sideIP00
Version as safety switchNo
Height306mm
Type of control elementLong turning handle
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq-kA
Depth153mm
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw50kA
Suitable for floor mountingNo
Suitable for distribution board installationYes
Switching power at 400 V710kW
Suitable for front mounting centreNo
Voltage release optionalNo
With pre-assembled cablingNo
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V1250A
Degree of protection (NEMA)Other
Suitable for front mounting 4-holeYes
Colour control elementBlack
Version as reversing switchNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V1250A
Device constructionComplete device in housing
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

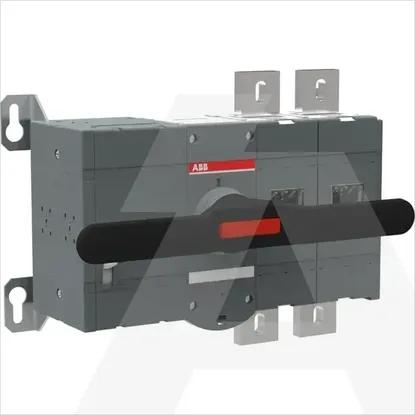

1SCA121193R1001 | OTM1250E2M230V
