Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width518.5mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Depth153mm
Rated operating voltage1000 - 1000V
Rated permanent current Iu-A
Number of auxiliary contacts as normally closed contact0
Height376.4mm
Number of poles2
Conditioned rated short-circuit current Iq-kA
Version as emergency stop installationNo
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Width in number of modular spacings-
Motor drive integratedNo
InterlockableNo
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Number of switches1
Colour control elementBlack
Voltage release optionalNo
Suitable for intermediate mountingNo
Version as safety switchNo
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Version as maintenance-/service switchNo
Rated short-time withstand current lcw55kA
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting centreNo
Suitable for floor mountingNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Degree of protection (NEMA)Other
Switching power at 400 V-kW
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

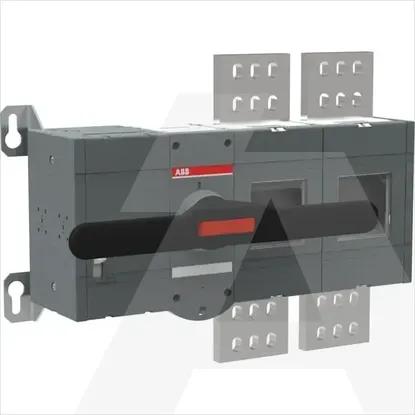

1SCA121195R1001 | OTM2500E2M230V
