Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width350mm
Height250mm
Depth312mm
Rated operation power at AC-3, 400 V-kW
Number of poles2
Rated permanent current Iu800A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP00
Version as main switchYes
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Type of control elementLong turning handle
Width in number of modular spacings-
Suitable for front mounting centreNo
Version as maintenance-/service switchNo
Rated short-time withstand current lcw20kA
Suitable for floor mountingNo
Suitable for distribution board installationYes
Version as safety switchNo
Number of switches1
Conditioned rated short-circuit current Iq80kA
Colour control elementBlack
InterlockableNo
Rated operation power at AC-23, 400 V450kW
Suitable for front mounting 4-holeYes
Type of electrical connection of main circuitBolt connection
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Switching power at 400 V450kW
Version as reversing switchNo
Device constructionComplete device in housing
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V800A
Rated permanent current at AC-23, 400 V800A
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

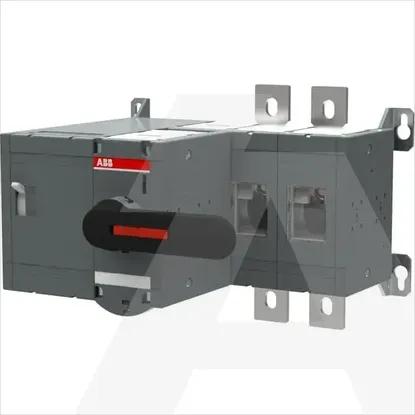

1SCA121197R1001 | OTM800E2M230V
