Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height376.4mm
Width518.5mm
Rated operation power at AC-3, 400 V-kW
Depth153mm
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Rated permanent current Iu-A
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Version as emergency stop installationNo
InterlockableNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchNo
Motor drive integratedNo
Version as main switchYes
Number of poles2
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V-kW
Width in number of modular spacings-
Number of switches1
Rated short-time withstand current lcw55kA
Type of control elementLong turning handle
Version as safety switchNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeYes
Colour control elementBlack
Voltage release optionalNo
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

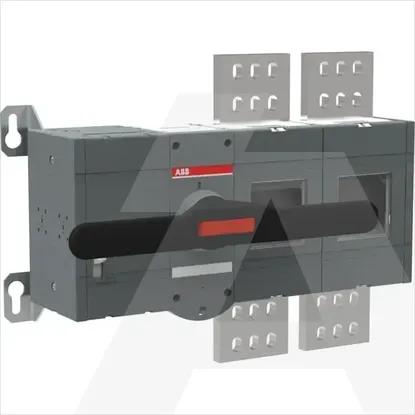

1SCA121201R1001 | OTM2000E2M230V
