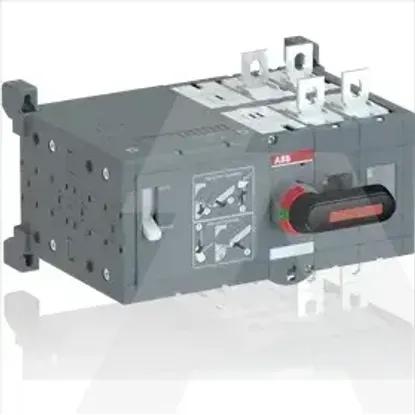

1SCA121209R1001 | OTM200E2CM230V
Code: 1982492
ManufacturerABB
Catalog number1SCA121209R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019524788
Details
- •OTM200E2CM230V MOTORIZED C/O SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height150mm
Width238mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Depth197mm
Type of electrical connection of main circuitScrew connection
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Version as safety switchNo
Number of switches1
Type of control elementLong turning handle
Version as main switchYes
Rated short-time withstand current lcw8kA
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP20
Motor drive integratedYes
Version as maintenance-/service switchYes
InterlockableYes
Suitable for intermediate mountingNo
Device constructionBuilt-in device plug-in technique
Suitable for floor mountingNo
Suitable for distribution board installationYes
Version as reversing switchNo
Colour control elementBlack
Degree of protection (NEMA)1
Voltage release optionalNo
Motor drive optionalNo
With pre-assembled cablingNo
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V200A
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC1000V
