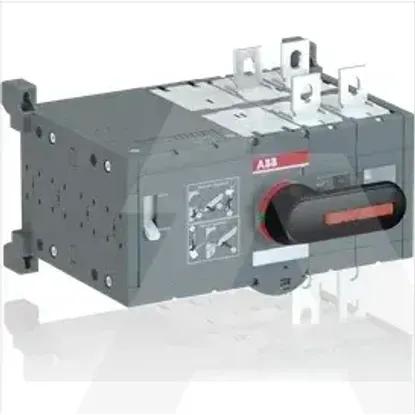

1SCA121226R1001 | OTM400E2CM230V
Code: 1982498
ManufacturerABB
Catalog number1SCA121226R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019524993
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height185mm
Width280mm
Depth235mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Colour control elementBlack
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitScrew connection
Motor drive integratedYes
Rated operating voltage1000 - 1000V
Version as emergency stop installationNo
InterlockableYes
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V-kW
Version as safety switchNo
Type of control elementLong turning handle
Suitable for front mounting 4-holeYes
Version as main switchYes
Rated short-time withstand current lcw15kA
Version as maintenance-/service switchYes
Number of switches1
Suitable for front mounting centreNo
Degree of protection (IP), front sideIP20
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V-A
With pre-assembled cablingNo
Switching power at 400 V-kW
Version as reversing switchNo
Device constructionBuilt-in device plug-in technique
Motor drive optionalNo
Voltage release optionalNo
Suitable for distribution board installationYes
Degree of protection (NEMA)1
Rated permanent current at AC-21, 400 V400A
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC1000V
