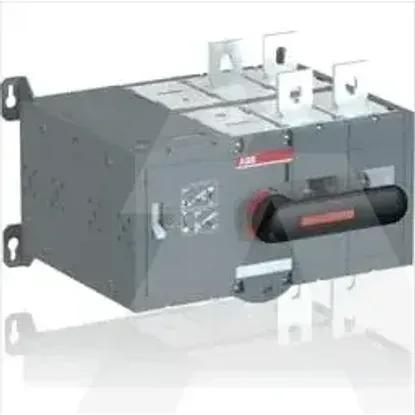

1SCA121270R1001 | OTM800E2CM230V
Code: 1982500
ManufacturerABB
Catalog number1SCA121270R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019525303
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Width346mm
Depth299mm
Rated operation power at AC-3, 400 V-kW
Height250mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Degree of protection (IP), front sideIP20
Suitable for front mounting 4-holeYes
Number of auxiliary contacts as change-over contact0
InterlockableYes
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Suitable for intermediate mountingNo
Motor drive optionalNo
Motor drive integratedYes
Voltage release optionalNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw20kA
Rated operation power at AC-23, 400 V-kW
Colour control elementBlack
Number of switches1
Version as maintenance-/service switchYes
Device constructionBuilt-in device plug-in technique
Suitable for floor mountingNo
Suitable for front mounting centreNo
Version as safety switchNo
Width in number of modular spacings-
Type of control elementLong turning handle
Conditioned rated short-circuit current Iq-kA
Degree of protection (NEMA)1
Version as reversing switchNo
Rated permanent current at AC-21, 400 V800A
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles2
Max. rated operation voltage Ue AC1000V
