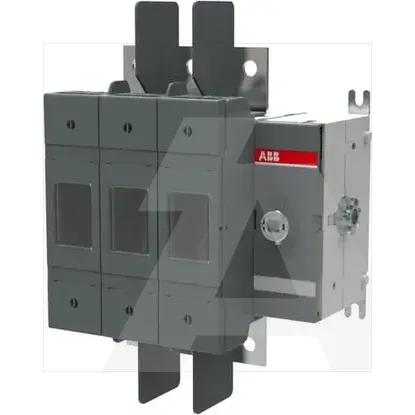

1SCA121974R1001 | OS100GJ30
Code: 1982514
ManufacturerABB
Catalog number1SCA121974R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019530215
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Suitable for busbar mountingYes
Motor drive integratedNo
Version as safety switchYes
Type of control elementShort thumb-grip
Motor drive optionalNo
Suitable for floor mountingNo
With error protectionNo
Suitable for front mountingNo
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V132kW
Rated short-time withstand current lcw5kA
Version as main switchYes
Position control elementRight
Equipped with connectorsYes
Version as emergency stop installationNo
Rated permanent current Iu160A
Number of poles3
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
