Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth82.5mm
Version as main switchYes
Rated permanent current Iu160A
Height150mm
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP00
Width115.5mm
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of switches1
Number of poles2
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
InterlockableNo
Type of control elementLong turning handle
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-23, 400 V88kW
Colour control elementBlack
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Version as reversing switchNo
Suitable for distribution board installationNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V200A
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw8kA
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Switching power at 400 V88kW
Motor drive optionalNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V160A
Voltage release optionalNo
Version as safety switchNo
Device constructionComplete device in housing
Version as maintenance-/service switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

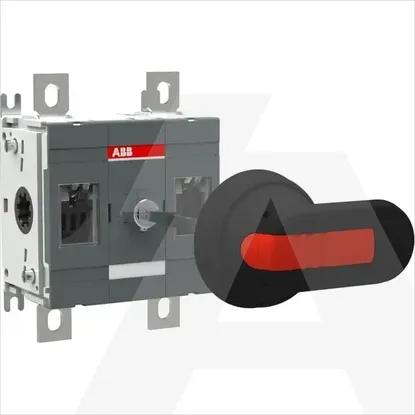

1SCA122710R1001 | OT160EV11P
