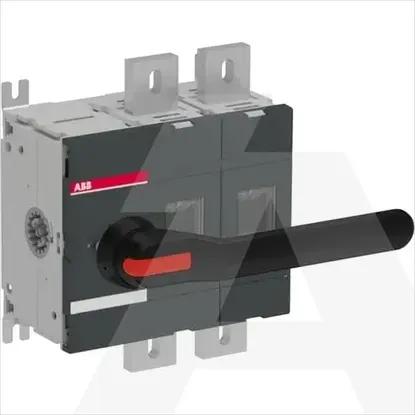

1SCA122711R1001 | OT1250E02K
Code: 1982521
ManufacturerABB
Catalog number1SCA122711R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019536330
Details
- •OT1250E02K SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Depth167mm
Height306mm
Conditioned rated short-circuit current Iq-kA
Number of switches1
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
InterlockableNo
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Width254.5mm
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V710kW
Version as main switchYes
Version as maintenance-/service switchYes
Switching power at 400 V710kW
Colour control elementBlack
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitBolt connection
Suitable for front mounting centreNo
Type of control elementOther
Rated short-time withstand current lcw50kA
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Motor drive optionalNo
Version as reversing switchNo
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V1250A
Rated permanent current at AC-21, 400 V1250A
Device constructionComplete device in housing
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current Iu1250A
Number of poles2
Max. rated operation voltage Ue AC1000V
