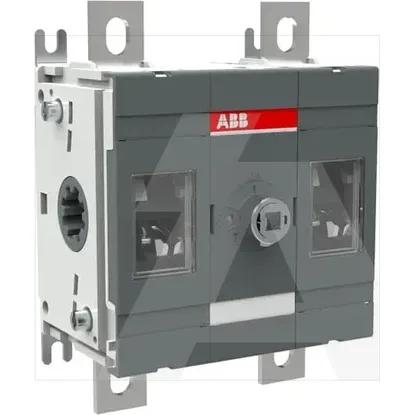

1SCA122726R1001 | OT160EV11
Code: 1982522
ManufacturerABB
Catalog number1SCA122726R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019536538
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height110.5mm
Depth82.5mm
Width150mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Number of switches1
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as safety switchNo
Rated operation power at AC-23, 400 V88kW
Suitable for front mounting centreNo
InterlockableNo
Type of control elementOther
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
Suitable for front mounting 4-holeNo
Version as main switchYes
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Motor drive optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V88kW
Device constructionComplete device in housing
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V160A
Rated permanent current Iu160A
Number of poles2
Max. rated operation voltage Ue AC1000V
