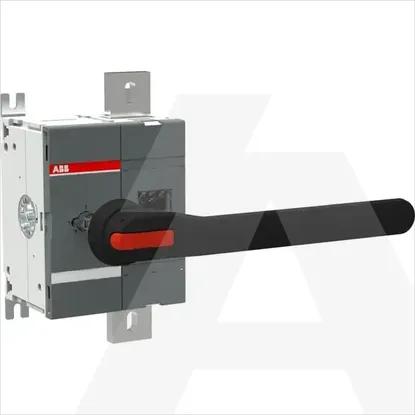

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Depth167mm
Number of auxiliary contacts as normally open contact0
Height306mm
Number of poles1
Number of switches1
Width174.5mm
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Rated permanent current Iu1000A
Motor drive integratedNo
InterlockableNo
Version as emergency stop installationNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Rated permanent current at AC-23, 400 V1000A
Rated short-time withstand current lcw50kA
Rated operation power at AC-23, 400 V560kW
Rated permanent current at AC-21, 400 V1000A
Suitable for front mounting centreNo
Switching power at 400 V560kW
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Colour control elementBlack
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Version as reversing switchNo
Version as safety switchNo
Suitable for distribution board installationYes
Device constructionComplete device in housing
Suitable for floor mountingNo
Version as main switchYes
Degree of protection (NEMA)Other
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA123134R1001 | OT1000E01P
