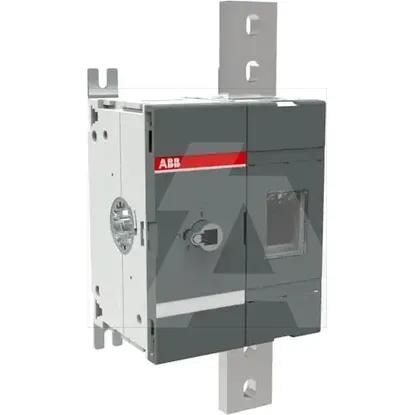

1SCA123137R1001 | OT1600E01
Code: 1982533
ManufacturerABB
Catalog number1SCA123137R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019539904
Details
- •OT1600E01 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Height372mm
Width174.5mm
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally open contact0
Depth167mm
Version as emergency stop installationNo
Width in number of modular spacings-
Number of switches1
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitBolt connection
Type of control elementOther
InterlockableNo
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Version as safety switchNo
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V710kW
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw50kA
Version as main switchYes
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V1250A
Switching power at 400 V710kW
Rated permanent current at AC-21, 400 V1600A
Version as reversing switchNo
Device constructionComplete device in housing
Suitable for distribution board installationNo
Motor drive optionalNo
Rated permanent current Iu1600A
Number of poles1
Max. rated operation voltage Ue AC1000V
