Details
- •Low-voltage industrial components

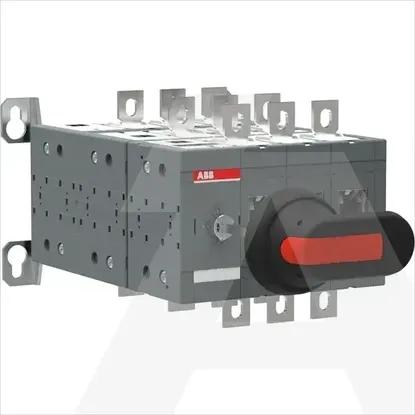

- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of poles3
Rated permanent current Iu-A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of switches1
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Rated operating voltage1000 - 1000V
InterlockableYes
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw8kA
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Colour control elementBlack
Version as main switchYes
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V110kW
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Version as safety switchNo
Voltage release optionalNo
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Device constructionBuilt-in device plug-in technique
Version as reversing switchNo
Switching power at 400 V110kW
Degree of protection (NEMA)1
Rated permanent current at AC-21, 400 V200A
Rated permanent current at AC-23, 400 V200A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA123552R1001 | OT200E03YP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-3, 400 V
-kW
Number of poles
3
Rated permanent current Iu
-A
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of switches
1
Motor drive integrated
Degree of protection (IP), front side
IP20
Rated operating voltage
1000 .. 1000V
Interlockable
Conditioned rated short-circuit current Iq
-kA
Number of auxiliary contacts as change-over contact
0
Rated short-time withstand current lcw
8kA
Type of control element
Long turning handle
Version as maintenance-/service switch
Colour control element
Black
Version as main switch
Suitable for floor mounting
Rated operation power at AC-23, 400 V
110kW
Suitable for front mounting 4-hole
Suitable for front mounting centre
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
Suitable for intermediate mounting
Suitable for distribution board installation
Version as safety switch
Voltage release optional
Motor drive optional
Max. rated operation voltage Ue AC
1000V
Device construction
Built-in device plug-in technique
Version as reversing switch
Switching power at 400 V
110kW
Degree of protection (NEMA)
1
Rated permanent current at AC-21, 400 V
200A
Rated permanent current at AC-23, 400 V
200A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
