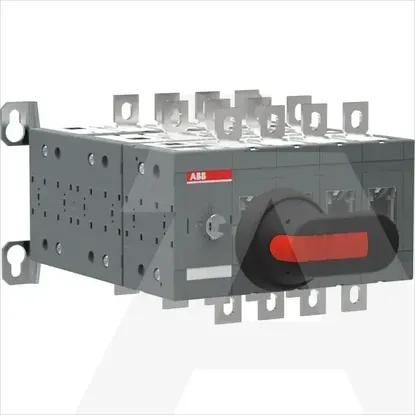

1SCA123556R1001 | OT160E04YP
Code: 1982539
ManufacturerABB
Catalog number1SCA123556R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019543406
Details
- •OT160E04YP BY-PASS SWITCH
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Rated permanent current at AC-23, 400 V160A
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Version as reversing switchNo
InterlockableYes
Suitable for front mounting 4-holeYes
Rated short-time withstand current lcw8kA
Motor drive optionalNo
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V90kW
Device constructionBuilt-in device plug-in technique
Suitable for front mounting centreNo
Voltage release optionalNo
Version as safety switchNo
Type of control elementLong turning handle
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Rated permanent current at AC-21, 400 V160A
Version as main switchYes
Suitable for distribution board installationYes
Number of switches1
Switching power at 400 V90kW
Suitable for floor mountingNo
Degree of protection (NEMA)1
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
