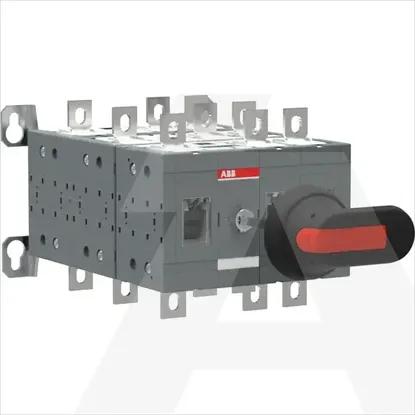

1SCA123564R1001 | OT200E12YP
Code: 1982541
ManufacturerABB
Catalog number1SCA123564R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019543482
Details
- •OT200E12YP BY-PASS SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Height150mm
Number of auxiliary contacts as normally closed contact0
Width194mm
Number of auxiliary contacts as normally open contact0
Depth236mm
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Degree of protection (IP), front sideIP20
InterlockableYes
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Motor drive integratedNo
Number of switches1
Type of control elementLong turning handle
Motor drive optionalNo
Colour control elementBlack
Suitable for front mounting 4-holeYes
Rated short-time withstand current lcw8kA
Suitable for distribution board installationYes
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V110kW
Voltage release optionalNo
Version as safety switchNo
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V200A
With pre-assembled cablingNo
Version as reversing switchNo
Switching power at 400 V110kW
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V200A
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
