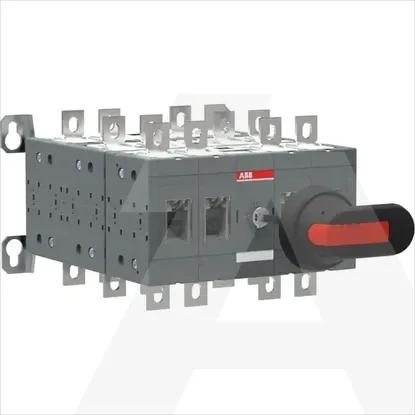

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth236mm
Width229mm
Height150mm
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Rated permanent current Iu-A
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Number of poles4
Rated operation power at AC-3, 400 V-kW
Number of switches1
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
InterlockableYes
Version as safety switchNo
Version as emergency stop installationNo
Colour control elementBlack
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Version as main switchYes
Type of control elementLong turning handle
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
Rated permanent current at AC-21, 400 V160A
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
Suitable for front mounting centreNo
Device constructionBuilt-in device plug-in technique
Switching power at 400 V90kW
Version as reversing switchNo
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V160A
Voltage release optionalNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V90kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA123575R1001 | OT160E22YP
