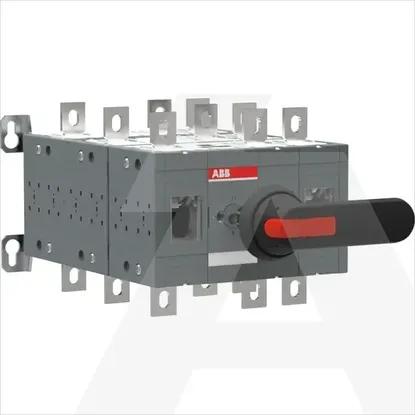

1SCA123584R1001 | OT400E12YP
Code: 1982549
ManufacturerABB
Catalog number1SCA123584R1001
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019543680
Details
- •OT400E12YP BY-PASS SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width in number of modular spacings-
Rated operation power at AC-3, 400 V-kW
Height185mm
Width240mm
Number of auxiliary contacts as normally closed contact0
Depth306mm
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Number of switches1
Version as safety switchNo
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Voltage release optionalNo
Version as maintenance-/service switchYes
Motor drive optionalNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V220kW
Rated permanent current at AC-21, 400 V400A
Colour control elementBlack
Version as main switchYes
Suitable for distribution board installationYes
Device constructionBuilt-in device plug-in technique
InterlockableYes
Suitable for front mounting 4-holeYes
Rated short-time withstand current lcw15kA
Suitable for front mounting centreNo
Motor drive integratedNo
Type of control elementLong turning handle
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V400A
Version as reversing switchNo
Switching power at 400 V220kW
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
