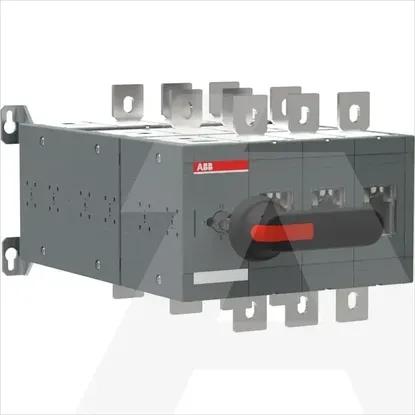

1SCA123591R1001 | OT800E03YP
Code: 1982552
ManufacturerABB
Catalog number1SCA123591R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019543758
Details
- •OT800E03YP BY-PASS SWITCH
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of switches1
InterlockableYes
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V450kW
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for front mounting 4-holeYes
Motor drive integratedNo
Suitable for floor mountingNo
Rated short-time withstand current lcw20kA
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Voltage release optionalNo
Switching power at 400 V450kW
Rated permanent current at AC-21, 400 V800A
Motor drive optionalNo
Version as reversing switchNo
Device constructionBuilt-in device plug-in technique
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V800A
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
