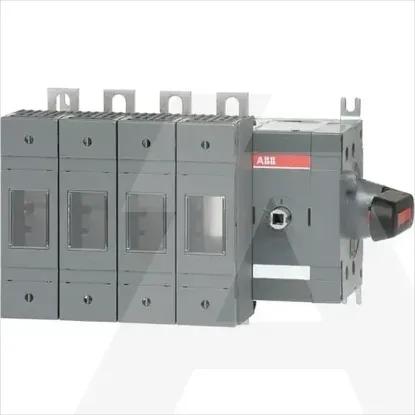

1SCA123660R1001 | OS125GDS40N1
Code: 1982555
ManufacturerABB
Catalog number1SCA123660R1001
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019544328
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Type of control elementShort thumb-grip
Rated operation power at AC-23, 400 V110kW
Position control elementRight
With error protectionNo
Suitable for floor mountingNo
Suitable for busbar mountingYes
Motor drive optionalNo
Rated short-time withstand current lcw5kA
Equipped with connectorsYes
Suitable for front mountingNo
Version as main switchYes
Version as safety switchYes
Rated permanent current Iu125A
Number of poles4
Suitable for fusesNH000
Max. rated operation voltage Ue AC1000V
