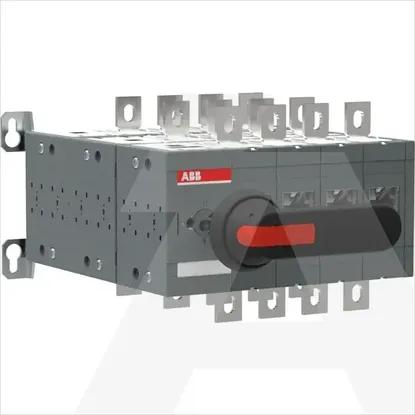

1SCA124026R1001 | OT400E04YP
Code: 1982558
ManufacturerABB
Catalog number1SCA124026R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019547152
Details
- •OT400E04YP BY-PASS SWITCH
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Rated operating voltage1000 - 1000V
Number of switches1
InterlockableYes
Rated operation power at AC-3, 400 V-kW
Version as main switchYes
Version as emergency stop installationNo
Version as safety switchNo
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Colour control elementBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationYes
Rated short-time withstand current lcw15kA
Rated operation power at AC-23, 400 V220kW
Suitable for front mounting centreNo
Voltage release optionalNo
Version as reversing switchNo
Device constructionBuilt-in device plug-in technique
Motor drive optionalNo
Rated permanent current at AC-23, 400 V400A
Switching power at 400 V220kW
Rated permanent current at AC-21, 400 V400A
Degree of protection (NEMA)1
Suitable for intermediate mountingNo
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
