Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
Width283mm
Rated operating voltage800 - 800V
Rated permanent current Iu-A
Number of poles4
Height100mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Depth116mm
Width in number of modular spacings-
Degree of protection (IP), front sideIP20
Motor drive integratedYes
Version as safety switchNo
Rated short-time withstand current lcw2.5kA
InterlockableYes
Rated operation power at AC-23, 400 V18.5kW
Version as main switchYes
Suitable for floor mountingNo
Number of switches1
Motor drive optionalNo
Version as emergency stop installationNo
Suitable for front mounting 4-holeYes
Colour control elementBlack
Device constructionBuilt-in device plug-in technique
Type of electrical connection of main circuitScrew connection
Suitable for distribution board installationYes
Voltage release optionalNo
Suitable for intermediate mountingNo
Number of auxiliary contacts as change-over contact0
Max. rated operation voltage Ue AC800V
Rated permanent current at AC-21, 400 V40A
Type of control elementLong turning handle
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Switching power at 400 V18.5kW
Rated permanent current at AC-23, 400 V40A
Version as reversing switchNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

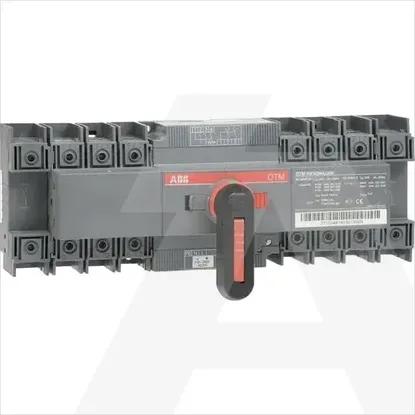

1SCA124063R1001 | OTM40F4CMA24D
