Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth130mm
Height250mm
Rated operation power at AC-3, 400 V-kW
Width251mm
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu630A
Number of poles2
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
InterlockableNo
Version as main switchYes
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP00
Rated short-time withstand current lcw20kA
Version as safety switchNo
Type of control elementOther
Number of switches1
Type of electrical connection of main circuitBolt connection
Width in number of modular spacings-
Motor drive integratedNo
Rated operation power at AC-23, 400 V355kW
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Version as emergency stop installationNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Device constructionComplete device in housing
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V630A
Suitable for intermediate mountingNo
Version as reversing switchNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Switching power at 400 V355kW
Rated permanent current at AC-23, 400 V630A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

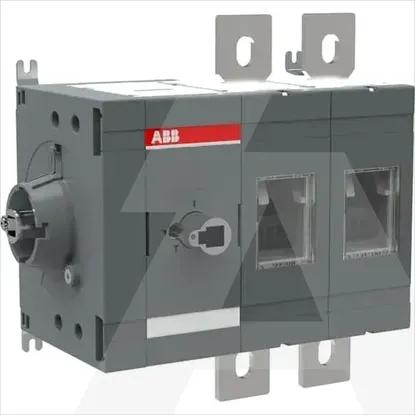

1SCA125445R1001 | OT630ES02
