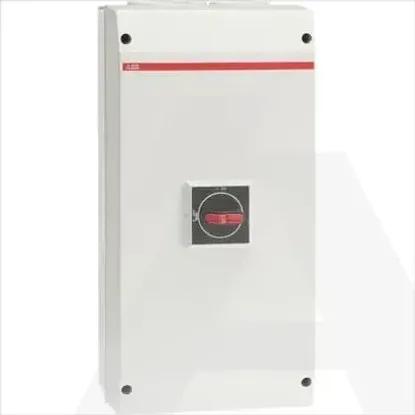

1SCA126054R1001 | OTP100B3M
Code: 1982595
ManufacturerABB
Catalog number1SCA126054R1001
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019560458
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Conditioned rated short-circuit current Iq-kA
Rated operating voltage750 - 750V
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Type of control elementTurn button
Degree of protection (IP), front sideIP65
Version as safety switchNo
Version as emergency stop installationNo
Motor drive integratedNo
InterlockableNo
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V37kW
Version as maintenance-/service switchNo
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for floor mountingNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Device constructionComplete device in housing
Voltage release optionalNo
Motor drive optionalNo
Switching power at 400 V37kW
Rated permanent current at AC-21, 400 V100A
Rated permanent current at AC-23, 400 V80A
Degree of protection (NEMA)Other
Suitable for front mounting 4-holeYes
Rated permanent current Iu115A
Number of poles3
Max. rated operation voltage Ue AC750V
